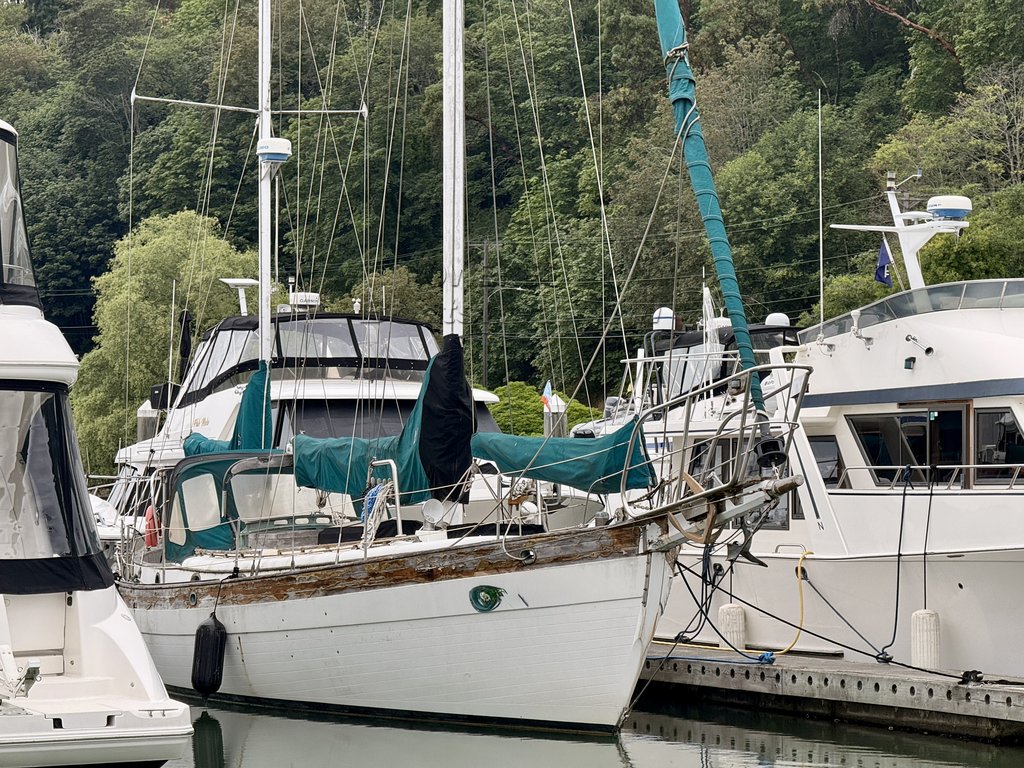

Hans Christian 43 Cutter/Ketch
Timeless Ocean Voyager
- Boat REF# · 351133
- Length · 43'0"
- Year · 1978
- Construction · GRP
- Underwater profile · Long Keel
- Sleeping berths · 7
- Engine · 1 x diesel 60hp, Isuzu C240 (1978)
- Lying · Tacoma, WA, USA. Shown by Appt!
Extra Details
| Designer | Harwood Ives |
|---|---|
| Builder | Ta Shing Ltd. |
| Lying | Tacoma, WA, USA. Shown by Appt! |
| Fuel capacity | 120.0 USG Total - 2 Tanks |
| Water capacity | 200.0 USG Total - 1 Tanks |
| Holding tank capacity | 25.0 USG Total - 1 Tanks |
Mechanical
| Engine | 1 x diesel 60hp |
|---|---|
| Engine make and model | Isuzu C240 (1978) |
| Engine Hours |
engine1= 2600 |
| Engine Cooled | Indirect |
| Steering | wheel |
| Drive | shaft |
| Prop(s) | 3 Blade Fixed |
| Fuel consumption (approx) | 1.5 USG /hour At Cruising Speed |
| Cruising speed (approx) | 7 knots |
| Max speed (approx) | 7 knots |
All AC/DC wiring and terminals have been replaced or upgraded during the current ownership. The heating system is new and the ducting has been upgraded. The plumbing systems have been upgraded as well as the fresh water systems.
Original Isuzu C240 motor appears to be in very good condition and has been properly maintained.
Owner recently installed New Glow Plugs and Heat Exchanger.
There is a new Xantrex True Charge 40 AMP charger with new deep cycle AGM starter battery.
Owner has also installed a new Xantrex Freedom 2000 XC Sine-Wave inverter Charger along with 6 new lithium ion house batteries.
Dimensions
| Length | 43'0" |
|---|---|
| LOD | 43'0" |
| LWL | 36'10" |
| Beam | 13'11" |
| Draft Min | 6'0" |
| Draft Max | 6'0" |
| Airdraft | 56'4" |
| Displacement | 31,505.5lbs |
| Headroom | 6'6" |
| Storage | On marina |
Rig
Ketch rigged Original Aluminium spars (1978) with Stainless Steel standing rigging (1978)
Sails
| Reefing mainsail | Quantum Tanbark - Slab (2017) Fully Battened, Lazy Jacks, 4 Reefs |
|---|---|
| Headsail | Quantum Tanbark - Furling (2017) |
| Other sails | Quantum Cutter Stay Tanbark (2017) |
| Quantum Mizzen Tanbark (2017) |
All sails are Quantum Tanbark incl. Headsail, Inner Foresail, Mainsail and Mizzen.
They are all in very good to excellent condition. The sails are all covered with custom canvas that appears like it's doing its job keeping the sails clear of UV.
Electrical Systems
12 volt battery, 110 shore power voltage, 6 batteries charged by: engine, shore power
Construction
| Construction | GRP |
|---|---|
| Underwater profile | Long Keel |
| Finish | Gelcoat finish |
Length overall for moorage purposes is 52 ft.
Her hull and topsides are heavily laid fiberglass.
-Fuel tanks are black iron sealed in mat and epoxy and appear to be in very good condition. Owner has kept tanks topped off to avoid condensation.
-Water tanks are stainless with transfer lines.
-Holding tank is poly.
The fiberglass hull shows slight oxidation, and PNW patteena, on the surface, but is otherwise intact and has no clear sign of delamination, hits or heavy wear. The hull has been cleaned by divers, periodically, but the owner states she will be due for a haul out and bottom paint.
Waterline Boats / Boatshed does not independently verify capacities and measures, which are reported from seller-provided information and/or literature.
Accommodation
| Total # of berths | 7 |
|---|---|
| No. of double berths | 2 |
| No. of single berths | 3 |
| Cabin(s) | 3 |
| Sink | 2 |
| Shower | 1 |
| Heads | 1 heads (Electric) |
Below decks is palatial, and headroom is 6'-5".
As you pass through the companionway and descend in to the cabin; you will find the interior is impeccable, clean, dry and odor free.
There are 3 private cabins 2 of which are double berthed, and there is one centrally located electric/macerating head with a built in shower. Storage is seemingly limitless.
The heating - plumbing and electrical systems have been refitted and all receipts are available to viewing, and it shows, the interior is in very good to excellent condition and shows impressively.
There are no clear signs of water ingress surrounding the port windows or hatches including the butterfly hatch, and the upholstery is in excellent condition.
There is a brand new 3-burner Force 10 gimbaled stove.
On deck, continuing forward and to port, you will notice the sweeping and roomy side decks allowing stable access forward and to the deck mounted granny bars mounted either side of the mainmast. The teak decks are not showing missing bungs or screws and there appeared to be no problem areas other than the need for a good sanding and finish.
Running rigging is mostly led aft, however the main halyard and fore sails are midship forward. There are lines that will need to be replaced. The cap rails and teak combing will need some rehab and refinish. All deck and running rigging, blocks and shivs appear functional but may need replacement and some maintenance in areas.
All lifeline stanchions appear well bedded. As expected the cockpit is room and deep. Nicely laid out for cushions and perfect for lounging while at heel. Helm controls are perfectly located and in very good condition.
3 burner propane Stove
Accommodation
| Stove | |
|---|---|
| Oven | |
| Sink | |
| Refrigerator | |
| Freezer | |
| Cabin heating | |
| Pressurised water system | |
| Hot water system | |
| Non-Smokers | |
| Microwave |
Below decks is palatial, and headroom is 6'-5".
As you pass through the companionway and descend in to the cabin; you will find the interior is impeccable, clean, dry and odor free.
There are 3 private cabins 2 of which are double berthed, and there is one centrally located electric/macerating head with a built in shower. Storage is seemingly limitless.
The heating - plumbing and electrical systems have been refitted and all receipts are available to viewing, and it shows, the interior is in very good to excellent condition and shows impressively.
There are no clear signs of water ingress surrounding the port windows or hatches including the butterfly hatch, and the upholstery is in excellent condition.
There is a brand new 3-burner Force 10 gimbaled stove.
On deck, continuing forward and to port, you will notice the sweeping and roomy side decks allowing stable access forward and to the deck mounted granny bars mounted either side of the mainmast. The teak decks are not showing missing bungs or screws and there appeared to be no problem areas other than the need for a good sanding and finish.
Running rigging is mostly led aft, however the main halyard and fore sails are midship forward. There are lines that will need to be replaced. The cap rails and teak combing will need some rehab and refinish. All deck and running rigging, blocks and shivs appear functional but may need replacement and some maintenance in areas.
All lifeline stanchions appear well bedded. As expected the cockpit is room and deep. Nicely laid out for cushions and perfect for lounging while at heel. Helm controls are perfectly located and in very good condition.
3 burner propane Stove
Deck Gear
| Sail cover | |
|---|---|
| Sprayhood | |
| Spray dodgers | |
| Fenders | |
| Boathook | |
| Instrument Covers |
2 halyard winches
4 sheet winches
Electric Lofrans windlass (with remote control)
2 anchors
(60LB Bruce / 60LB Claw)
Deck hardware is serviceable and functional but will need to be upgraded for future heavy use.
There are 2 primary pedestal mounted sheeting winches located Port and Starboard within the Cockpit. A halyard winch is mounted on the Mizzen Mast.
The Mainsaill Mast has a halyard winch mounted on mast and can also be used to raise both working headsails. There are 2 secondary sheeting winches located on coach deck on either side of the companionway. All winches appear to operate well and are in serviceable condition.
Anchor chain is 1/2" chain of unknown length. Rode is of unknown length.
There is a roller and brace for a stern anchor at the pushpit.
All chain is of galvanized 1/2" - 5/8". Lengths are not known by the current owner, however it appears to be in serviceable condition overall. Winches are operable and are well bedded.
The Anchor Windlass is a Heavy Lewmar with electric foot operated switches for up/down operation.
Various blocks and deck organizers may need replacement and/or servicing at buyers discretion.
There is currently no tender available with sale.
Nav Equipment
| Compass | |
|---|---|
| Wind | |
| Radar | |
| VHF | |
| VHF DSC radio | |
| GPS | |
| Chart plotter | |
| Stereo | |
| Clock | |
| Barometer | |
| Navigation lights | |
| TV | |
| AIS Receiver | |
| Depth sounder | |
| Radar Reflector |
Currently installed navionics include:
Garmin 7 series Chartplotter at helm
Micrologic Mariner GPS Navigator
Furuno Model 1621 X-band Radar Display
Furuno LC90 Loran C Navigator
Furuno Radar Dome RSB-0060
Icom VHF M400 Series w/Mic Control
All Nav Systems are functional and show in very good condition. There are also newer, updated and a new Garmin navionics Suite with MFD chart plotter that have yet to be installed and will be included in the sale.
Safety Equipment
| Carbon Monoxide detector | |
|---|---|
| Life jackets | |
| Safety harnesses | |
| Horn | |
| EPIRB 406MHz | |
| Emergency steering |
3 bilge pumps (1 manual / 2 electric)
There is a manual Bosworth manual bilge pump located below the cockpit seating area.
2 Rule Electric Bilge pump forward and aft of engine compartment
Broker's Comments
*Length overall (LOA) is based on manufacturing values.
* *Keep in mind the overhang lengths will be necessary for mooring and marina berth context. In this case she is just over 50' counting overhanging components.
Hans Christians were purpose built to handle long voyages, and provide comfortable living at sea for extended period. At anchor she will shrug off ground swells and allow occupants a peaceful respite.
Overall she is a very solid example of this renowned brand.
With a fair amount of elbow grease and vision it would not take much to get this beautiful girl back in shipshape.
Over the last 3 years, the current owner has invested well over $50k to refit and maintain the operational systems and mechanical components. During this time all through hull fittings have been replaced and the hull was sanded and new barrier coat - zincs were replace where needed. There was no visible signs of osmosis.
Below decks, her interior is lavish and impeccably crafted in teak, bronze, copper and stainless hardware. From the overhead to the bulkheads and sole there are no stains and no sign of water ingress. All the port lights are clean and nicely bedded with no sign of water damage around the perimeters. The upholstery look new and in very good condition.
Every element below decks is clean and odor free.
There are 3 private cabins 2 of which are double berthed.
The 2 aft cabins provide single berth to starboard and a double to port. There is storage in excess for either.
There is a large navigation station to starboard and forward of the companionway as you descend. The desk space is large and unencumbered. There is good access to the components, including radar, VHF, GPS. and chart plotter.
The galley is massive and the basin with work surface is centrally located to make food prep at sea a breeze. There are huge toptloading refrigerator and freezer. Food storage is abundant.
In the beamiest section below decks, you will find a cavernous saloon with a huge settee and table.
Moving forward of the saloon is the large head to port. It has a stand alone shower, space for more storage and a new macerating electric head. This space can be isolated from the saloon and the V berth by utilizing clever hatch and door system. The space starboard of the head is storage and shelves with fiddled edges.
Forward of this space is a very large V berth w/ queen quarter berth to port. There is also access to the anchor locker forward of V berth.
All access to engine, utilities and heaps of storage is below the settee and galley basin. The access panels are easily removed and allow very good access to most of the major operational systems.
The Isuzu motor has been recently serviced and has new glow plugs and heat exchanger. With the current hours and basic maintenance it will have a long service life.
Above decks, as you move around the exterior, the teak elements of this stately vessel appear structurally sound, however, she will need some sanding and considerable cosmetic revitalization. The hull-freeboard and overall foundation looks solid. The bowsprit has some paint delamination in areas.
The standing rigging appears sound although it does appear original and a rigging survey is advisable prior to heavy voyaging. The running rigging, blocks, winches and deck organizers appear serviceable but could use attention and cleaning.
Her slip is transferrable at a clean and secure marina in Tacoma, WA.
This Hans Christian 43 is currently available for viewing by appointment and reasonable offers are being considered. She would make a great LLC opportunity for an air BNB, and also a great travelling home on the sea for a couple or small family with vision and ambition.
These boat details are subject to contract.
Note: Offers on the asking price may be considered.
